3D mesh support

Sensat supports the visualisation of 3D meshes for .dgn, .ifc.dwg, and .glb files to help you view your 3D project assets in the full context of your project’s site survey and other data.

Uploading your 3D mesh

1. Navigate to your project from the Project Manager homepage.

2. Click into your project and navigate to the upload button on the right-hand toolbar on the screen.

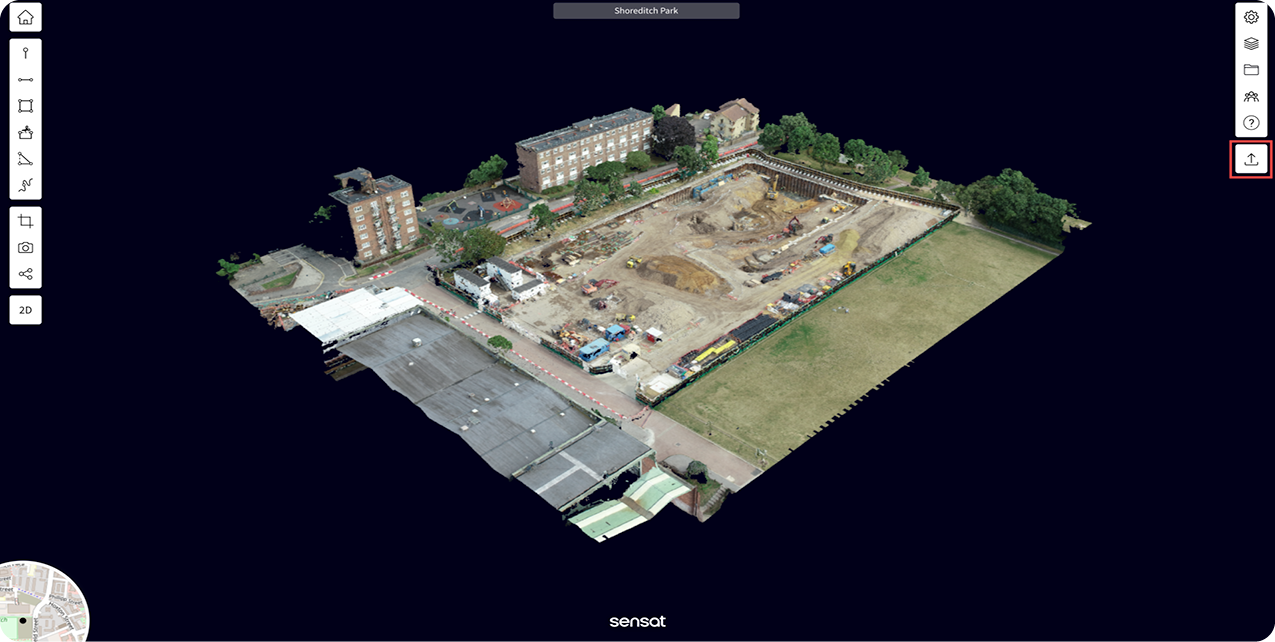

Navigate to the file upload panel

3. Upload a .dwg or .glbfile from your local drive.

4. As soon as the file is processed, you will be able to see your 3D design model in your project.

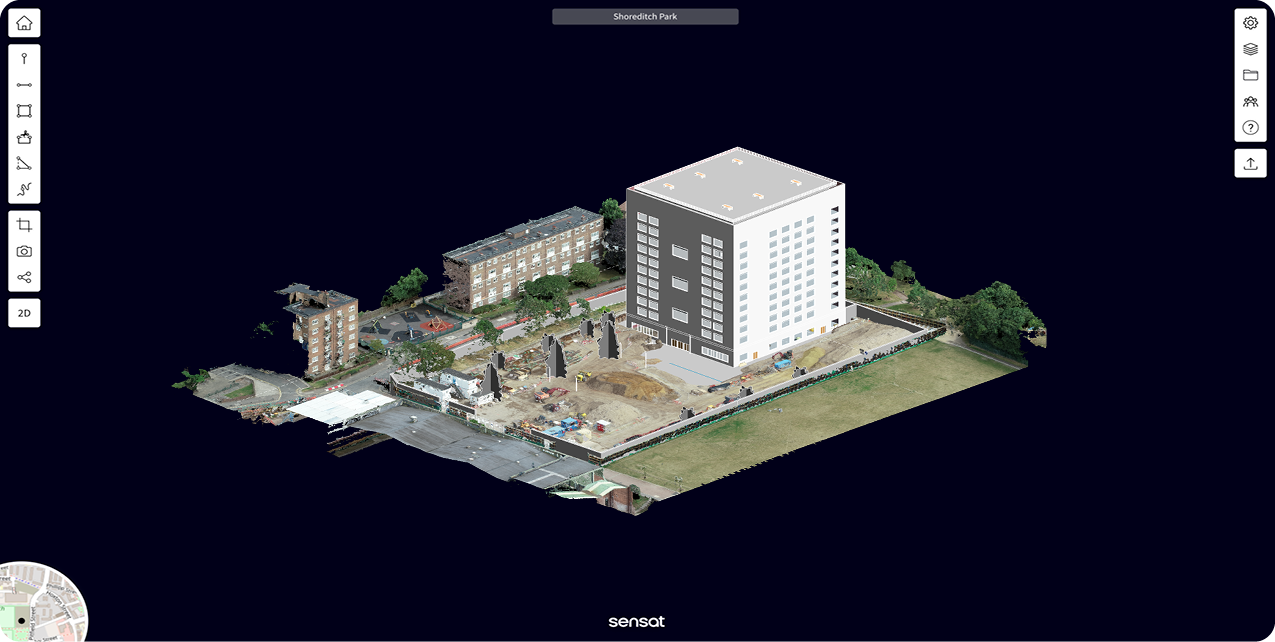

View your 3D mesh

DWG entity subsection Below is an exhaustive list of DWG entities we support in the Sensat platform. These entities have been carefully selected to enable you to view a 3D mesh of BIM and CAD assets within Sensat: 3DFACE, ARC, CIRCLE, ELLIPSE, LINE, WPOLYLINE, POINT, POLYLINE and SPLINE.

Uploading a file

The Sensat platform allows you to upload as many files into your project as you would like. Learn here how to add a file.

What file types can I upload?

Sensat accepts many different file types. Learn here which ones.
