Markup: areas and zones

The zone tool allows you to measure the area of a selected section of your project. It also allows you to highlight any significant zones within your project site for colleague collaboration.

  1. Select the zone icon in the left-hand toolbar.

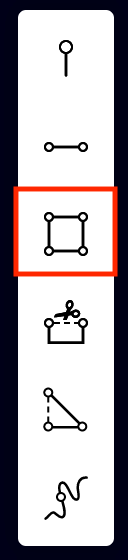

Select zone tool from the right hand panel
  1. Navigate to the desired area of your project.
  2. Single-click to generate the first point, then unclick.
  3. Move the cursor to the subsequent points of the polygon you wish to generate.
  4. Double-click on the last point to finalise your zone.
  5. Your measurement will be saved as a post in the Uploads and Markups panel.

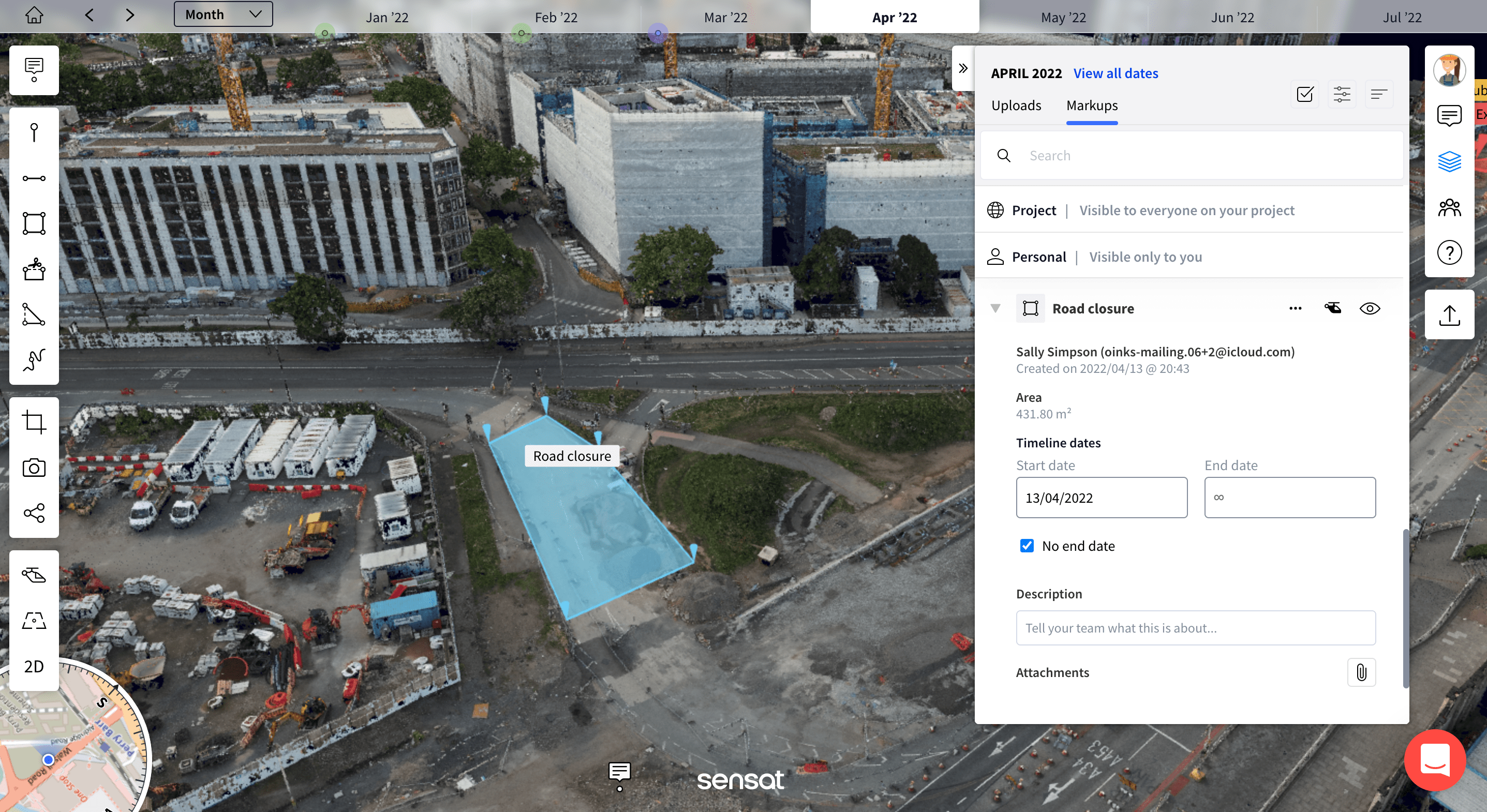

The markup can be found in the markups panel

Markups: visibility of your markups

Set your markups so only you can see them, or change them so that your whole team can view them too.

Markup: navigating your markups

Quickly filter and sort your markups to find the one you are looking for.
